SAMPLE EXTRUDER

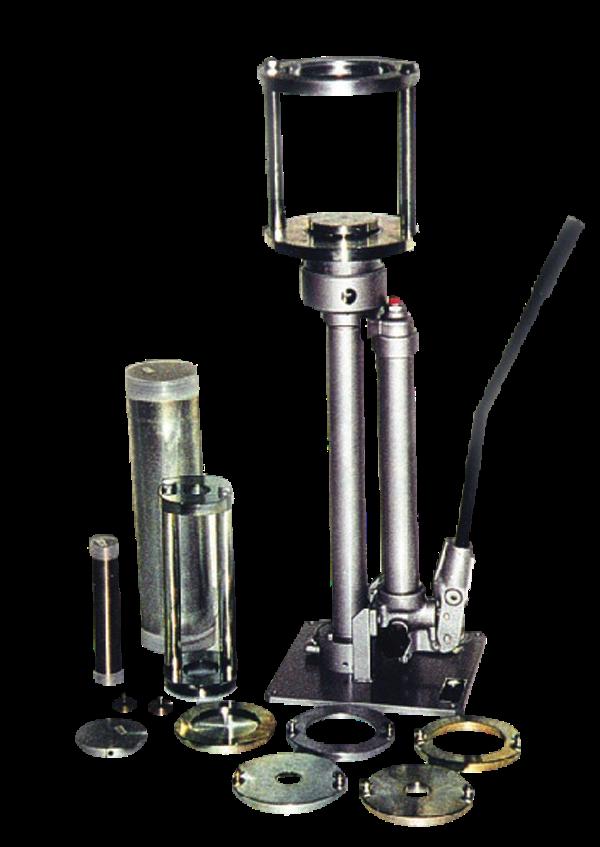

S 57
Hand-operated Universal Extruder
with 480mm travel hydraulic jack for extrude 35mm to 152.4mm
diameter sample, supplied without accessories.

Accessories:
S 57/A
U-100 (U-4) Sample tube with caps.

S 57/B
Steel Sample tube, 38mm dia x 230mm with end cap.

S 57/C
Adaptor rings for extruding 38, 100 & 150mm dia, 4" and 6"
Sample.

S 57/D
Tamper for extruding sample.

S 58
Electric Extruder
Extrude of undisturbed sample from thin wall sample tube,
diameter from 35mm to 150mm. maximum lenght of sample
can up to 900mm. Adjustable height regulated to allow alignment
independently of sample diameter. Adaptors ring and tamper
need to be order separetely when odering. Please specify the
diameter require.

Specification:
Max. thrust: 700kg (hydarulic pump)
Max. piston stroke: 900mm
Speed range: 0-10mm/sec
Max. extension diameter of sample tube: 160mm
Dimension: 3000 x 600 x 1200mm (H)
weight: 250kg
Power: 220kV, 50Hz, 1pH

S 58-01
Identical to S 58, but with hand operated.
