SOIL COMPACTION AND IMPACT SOIL TESTING

Category: SOIL TESTING
Product Code: SOIL TESTING

S 22
Standard: BS 1377:4, 1924:2

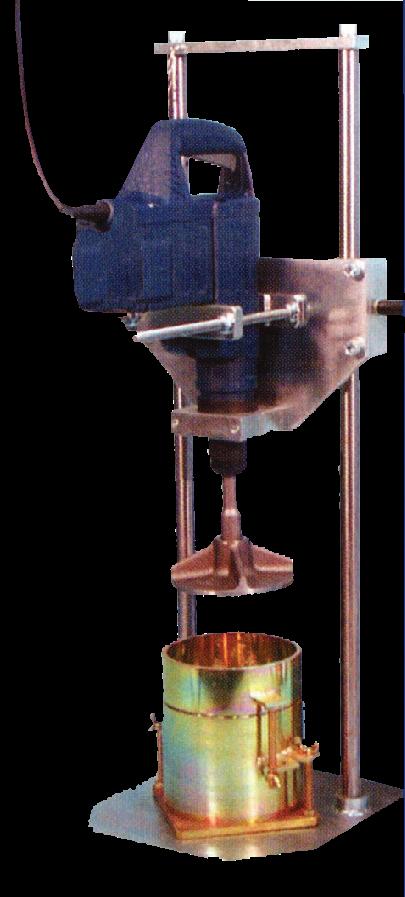

Electric Vibrating Hammer
Suitable for the compaction of soil proctor, CBR Test, concrete and asphalt in the
percentage refusal density by using dirrerent sizes of tamping foot and need to order
separately
Power: 720watt, 240V, 50hz, 1ph

ACCESSORIES:

S 22-01 Tamping foot 95mm diameter with 300mm long sharnk
S 22-02 Tamping foot 102mm diameter with 300mm long sharnk
S 22-03 Tamping foot 146mm diameter with 300mm long sharnk
S 22-04 Tamping foot 95mm square with 300mm long sharnk
S 22-05 Tamping foot 146mm square with 300mm long sharnk
S 22-06 Vibrating hammer support frame for rendering it stable easy to use

















S 23
Clegg Impact Soil Tester

For Soil Compactor results can be connected to CBR test portable, easy to use.
Supplied with 4.5kg hammer, guide tube, digital readout of blow and calibrating ring.

S 23-01
Same as above, but with 2.5kg hammer.















S 24
Hand Vane Tester

The equipment is for determination of shear strenght of cohesive soils. lt
comprises a torque head that give direct reading scales with non-return pointer.
2 types of vane either 33mm, range 0 to 28kPa or 19mm vane, range 0 to 120kPa
can be choose. Some accessories of extension rod, 30mm or 1 metre long for
penetration testing at difficult site or location is provided (optional).
Weight: approv 2.6kg

Accessories:
S 74-01
33mm diameter vane x 66mm long
S 74-02 19mm diameter vane x 38mm long
S 74-03 Extension rod 300mm long
S 74-04 Extension rod 1 metre long
